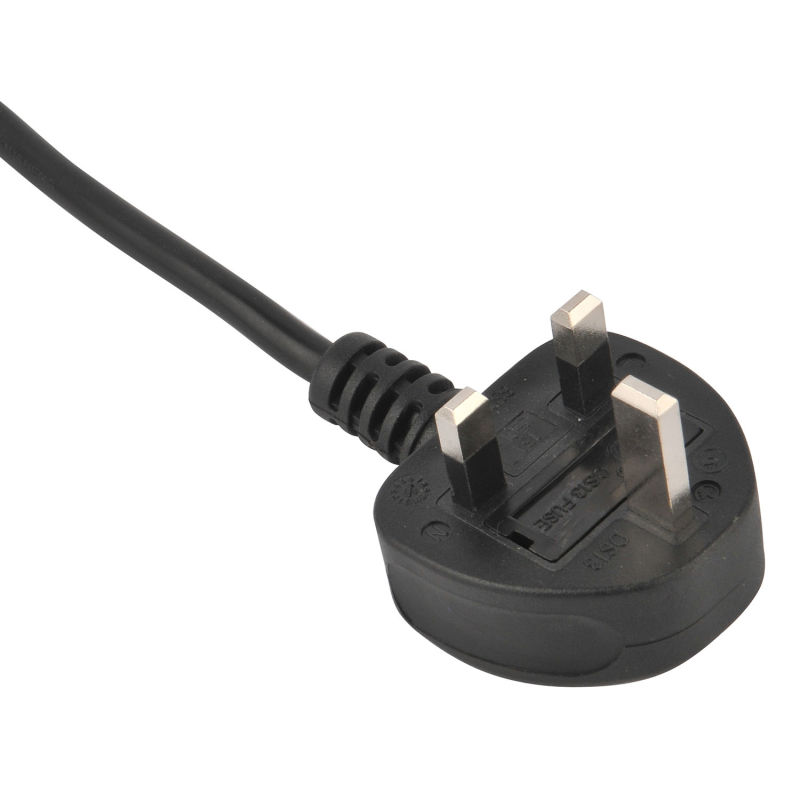

Plug (OS13+st3)

  • Model NO.: os13+st3
  • Function: AC Plug
  • Application: Power Suplly
  • Nominal Voltage: 250V
  • Male: OS13
  • Rated Voltage: 250V
  • Color: Black/ White, as Per to Your Requirement
  • Sec. Mm^2: 0.75/ 1.0/ 1.5
  • No. of Cores: 2/ 3
  • Trademark: OUSHENG
  • Origin: Zhejiang Yuyao
  • Standard: British Standard
  • Certification: BSI
  • Interface Type: AC/DC
  • Brand: Ousheng
  • Female: St3
  • Rated Current: 3A/ 5A/ 10A/ 13A
  • Cable Type: H03VV-F/ H05VV-F/ H03vvh2-F/ H05vvh2-F
  • Plastics: PVC
  • Temperature Tolerence: -30-200 Celcius
  • Specification: RoHS
Quantity:

Plug (OS13+st3)

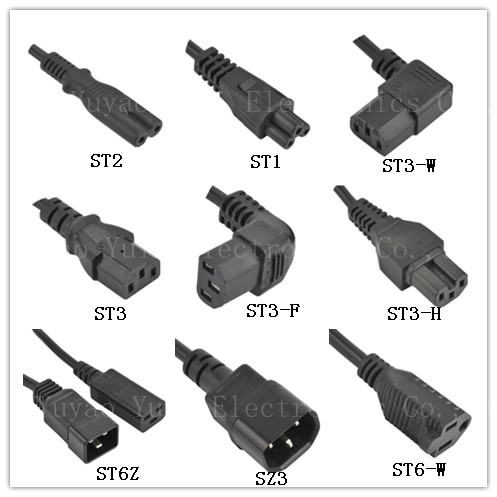

The following terminals can be connected to this BSI power plug (Y006A).
Plug (OS13+st3)

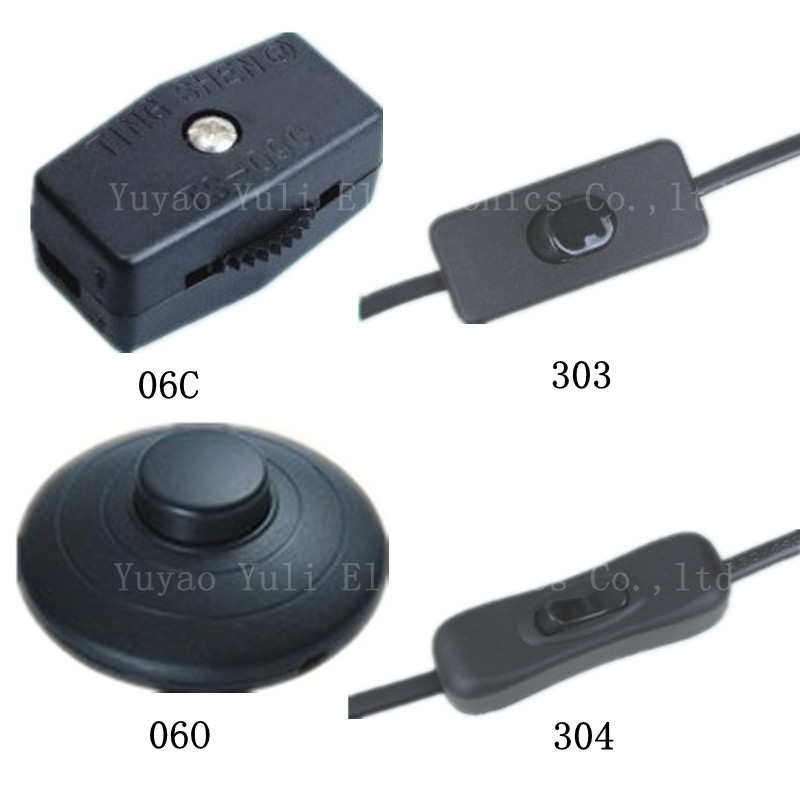

The following switches can be connected to this BSI power plug (Y006A).
Plug (OS13+st3)





For your convenience to get the exact pricing timely, please inform me the following information:

1. The specification of the cable:

   a.  NO. of cores( 2 or 3)

   b. The sectional area of conductor(such as 0.5mm^2,   0.75mm^2, 1.0mm^2, 1.5mm^2)

   c. The Nom. diameter of insulation or flat or round circled sheath(such as 6.3, 6.5, 3.3*6.3)

   d. The material type of sheath(PVC)

2. The specification of the plug:

   a. to which country(such as America, European Countries)

   b. NO. of pins(2 or 3)

   c. Which certification(VDE, UC, UL)

3. The specification of the terminals

4. Others:

   a. Min. quantity

   b. Delivery time

   c. The specification of package

   d. ...

Much better to show me detailed products drawing.

Any problems, please feel free to contact me
Cable type SEC. (mm^2)
H03VV-F  2-3*0.75
H05VV-F  2-3*0.75/ 1.0/ 1.5
H03VVH2-F  2*0.75
H05VVH2-F  2*0.75/ 1.0
